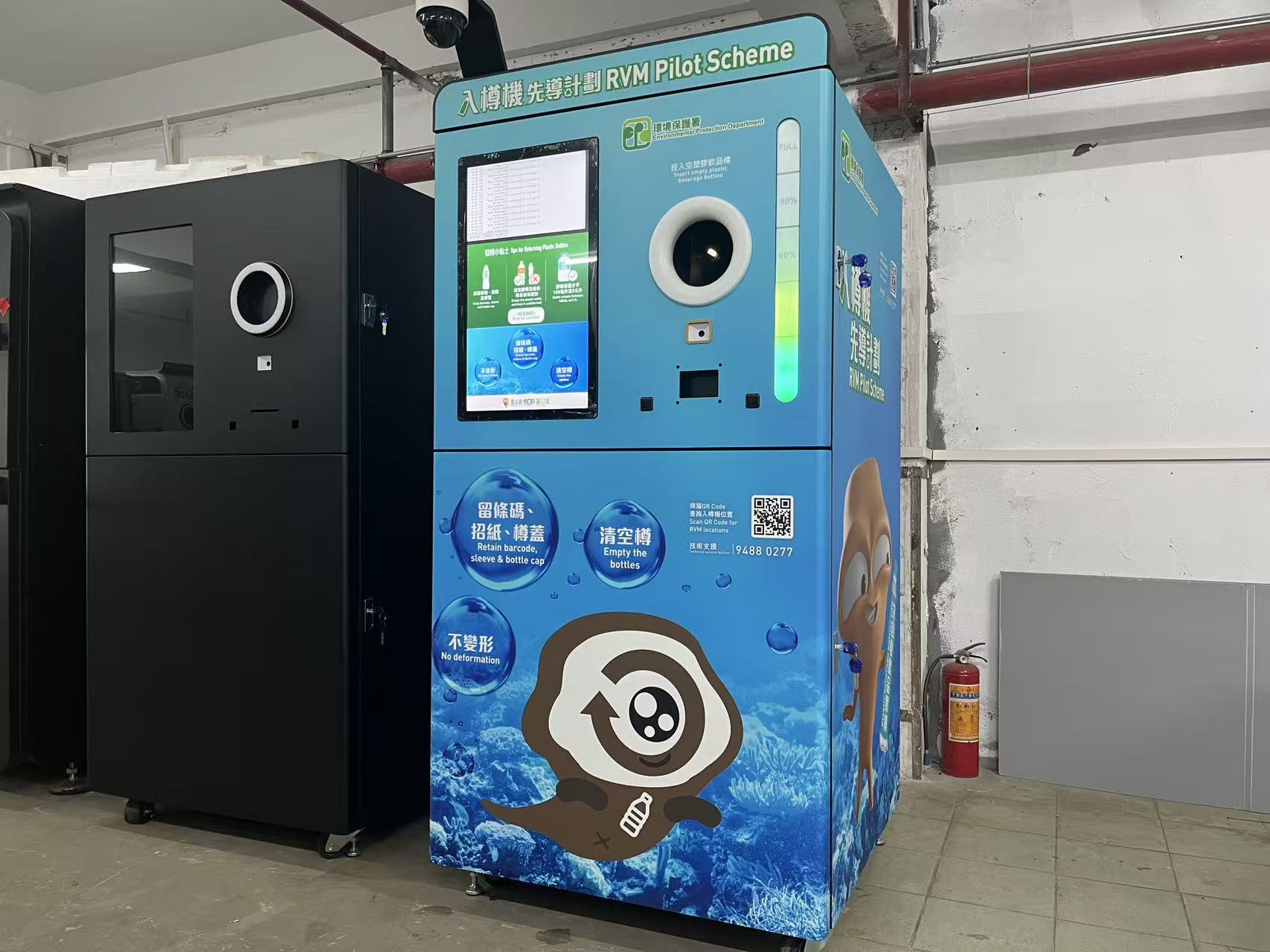

China RVM 2000 — Reverse Vending Machine (with - For outdoor)
Compact, high-throughput RVM for PET bottles, cans . DRS-ready with flexible payout and coupon integration — ideal for supermarkets, malls and recycling hubs.
DRS Compliant
OEM / ODM
Remote Monitoring
CE
| Model | China RVM 2000 (KG-RVM-2000) |
|---|---|
| Throughput | Up to 600 items/hour |
| Accepted Materials | PET bottles, Aluminum cans |
| Power | AC 110-240V, 50/60Hz |
| Dimensions | 1050 x 950 x 2050 mm |
| Weight | ~220 kg |
| Connectivity | 4G / Ethernet / Wi-Fi |
|---|---|
| Payment | Coupon, Token, Card, Mobile Wallet |
| Storage | Internal bin up to 250L |
| Operating Temp | -30°C to 60°C |
| Warranty | 1 year (extendable) |
Key Features
1 High Accuracy Recognition
Camera + sensor fusion for >98% material recognition and barcode parsing.
2 Modular Bin System
Replaceable storage modules for fast maintenance and easy transport.
3 Flexible Incentives
Voucher/coupon (Prices may increase R&D for your API), cash-back via mobile, loyalty integration via API.
4 Crusher For Flatten Bottle
A powerful flattener can flatten bottles, reducing their size by up to a quarter, thus creating more storage space.
5 Barcode database as whitelist
By using the barcode database whitelist, we can determine what kind of material the bottle is made of. .
6 Yolo5 Visual Processing
Yolo5 uses AI vision to determine whether something is recyclable or unacceptable..
7 sorting system
It features a sorting system. Aluminum cans and plastic bottles are separated into separate recycling bins.
How it works
- User inserts bottle or can into the inlet.
- RVM scans barcode and inspects material via camera/sensors.
- System confirms acceptance and sorts into internal bin.
- User receives coupon / credit via chosen payout method.
Features

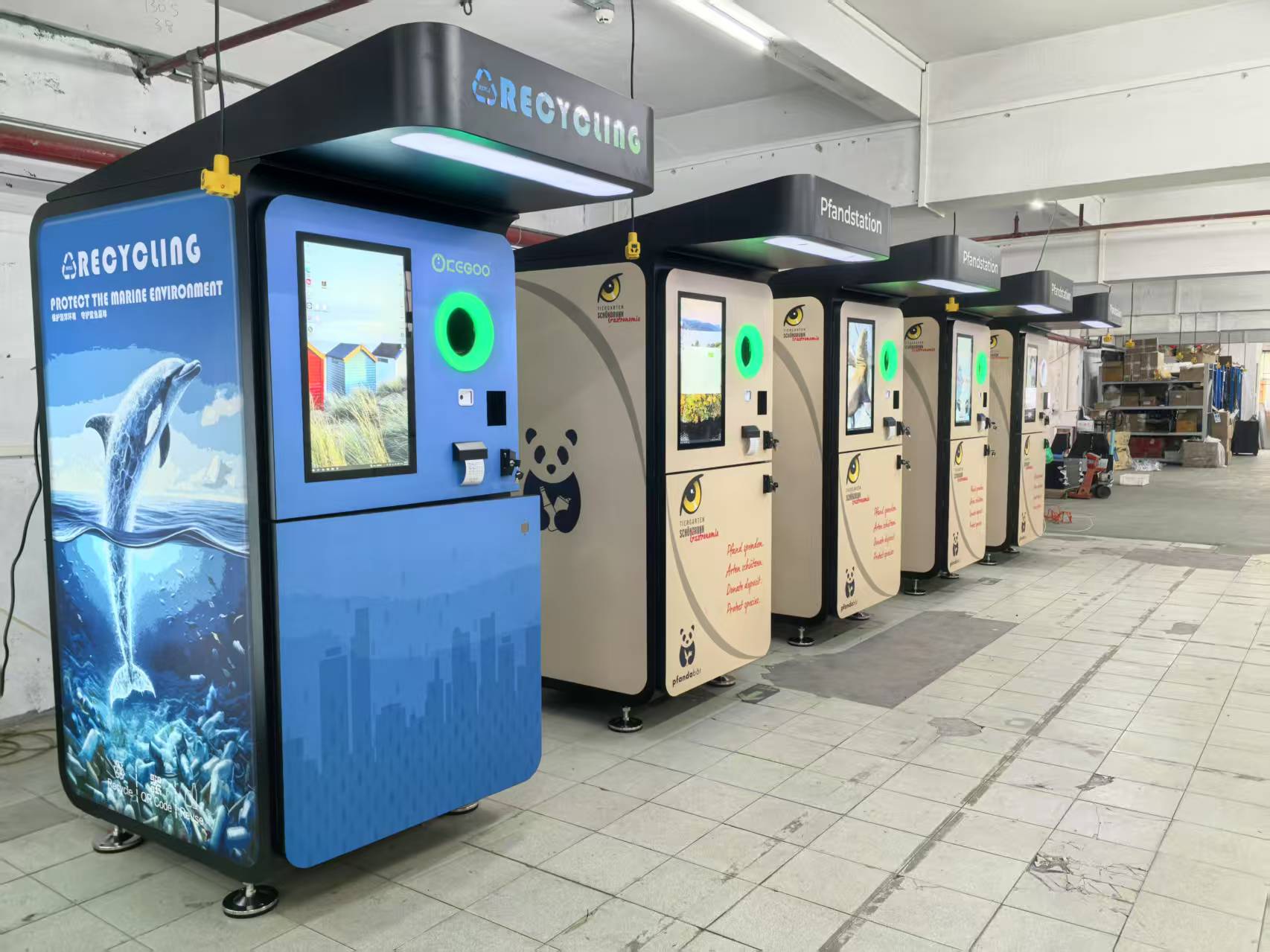

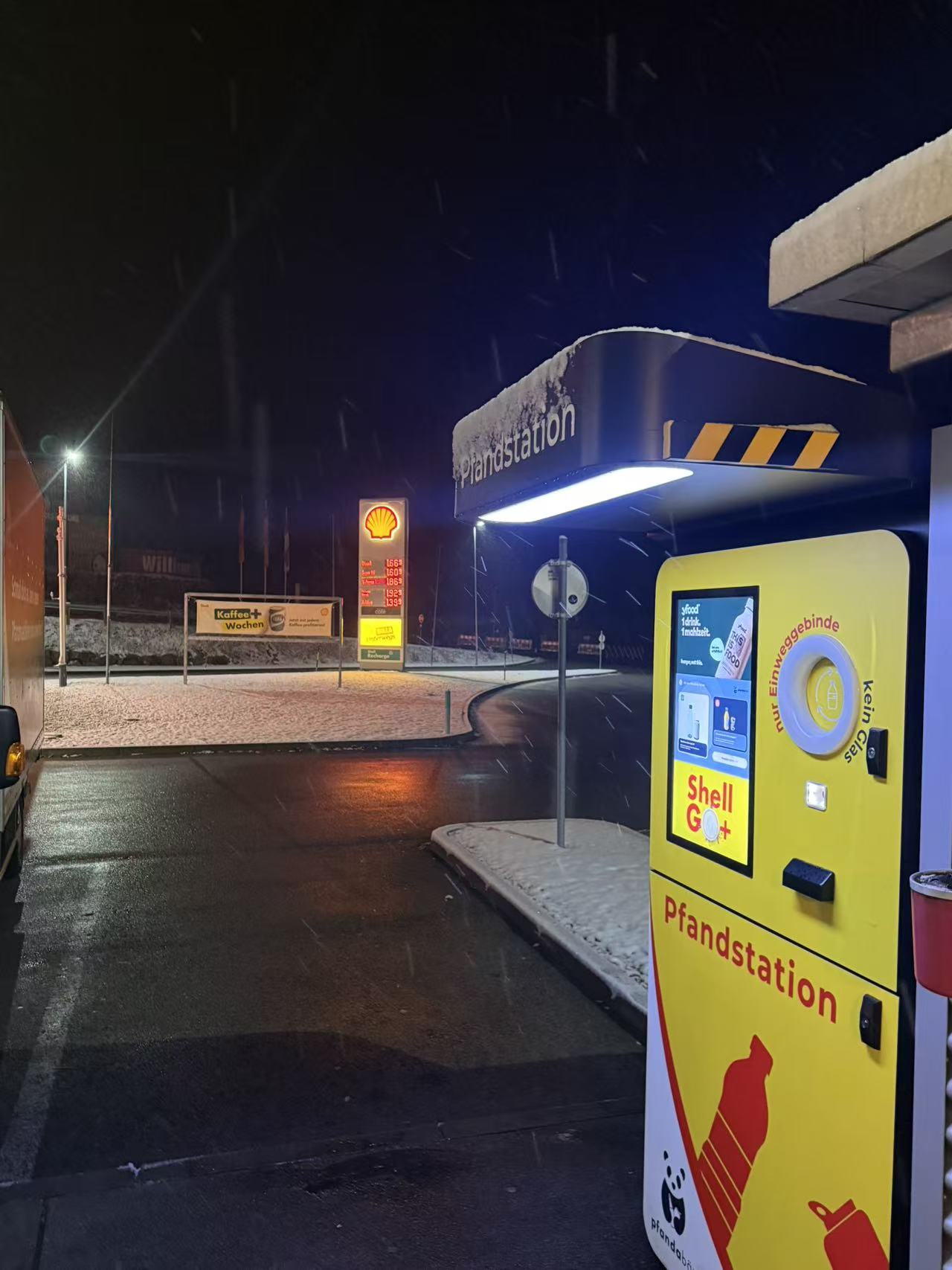

The difference between outdoor and indoor units
We have both outdoor and indoor versions; the outdoor version is more expensive.
Can you customize and design branding and UI?
Yes — OEM/ODM services include custom wrap, UI language, and integration with local DRS systems.
